Houston Manufacturing Facility & Shipping Capabilities
Krueger Engineering's Houston facility supports large-scale fabrication projects for critical industrial applications. Our team combines shop capacity, experienced personnel, and logistics access to help move complex projects from production to delivery.
Built for Heavy Fabrication and Efficient Movement

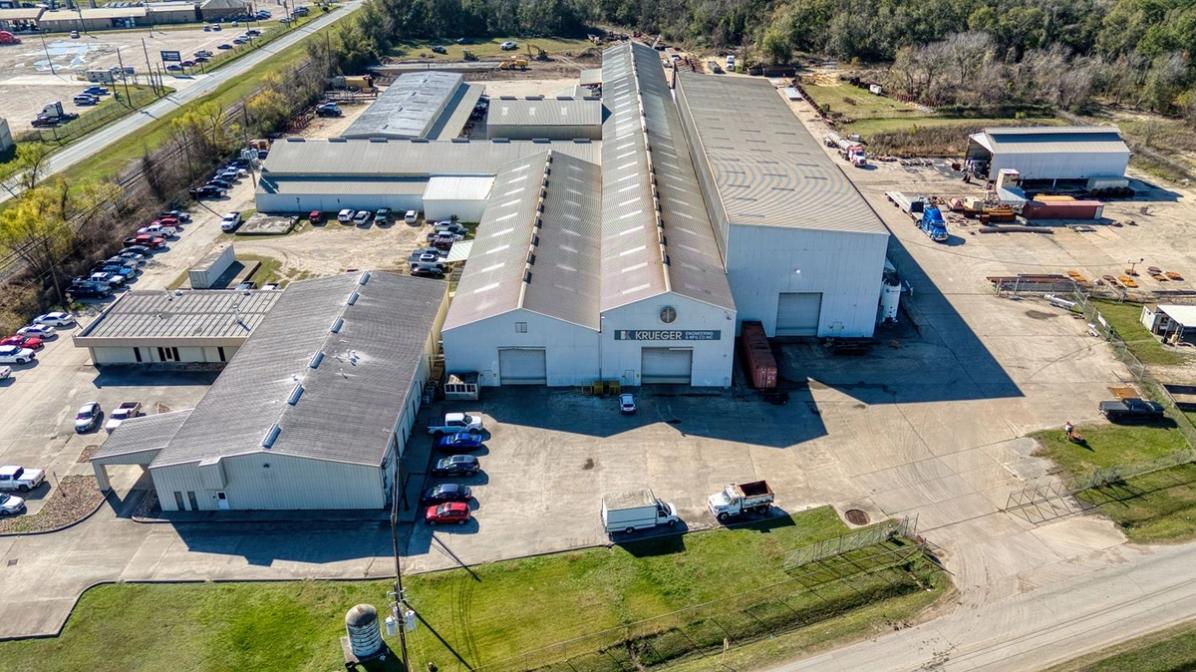

Krueger’s Houston manufacturing facility includes 110,000 sq. ft. of covered shop area on a 27-acre site. This footprint provides the space needed for industrial fabrication, equipment assembly, material staging, and large project workflows.

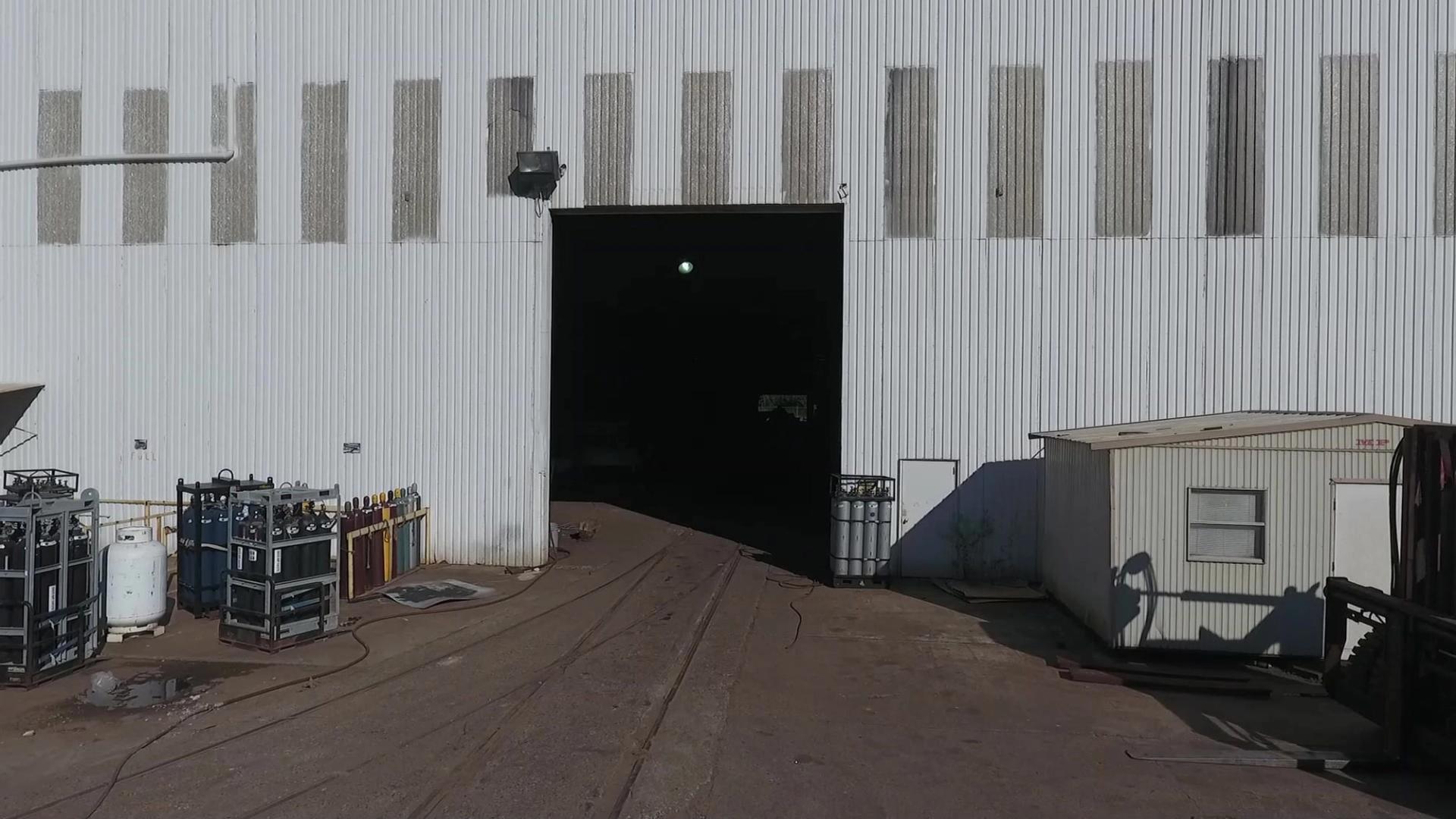

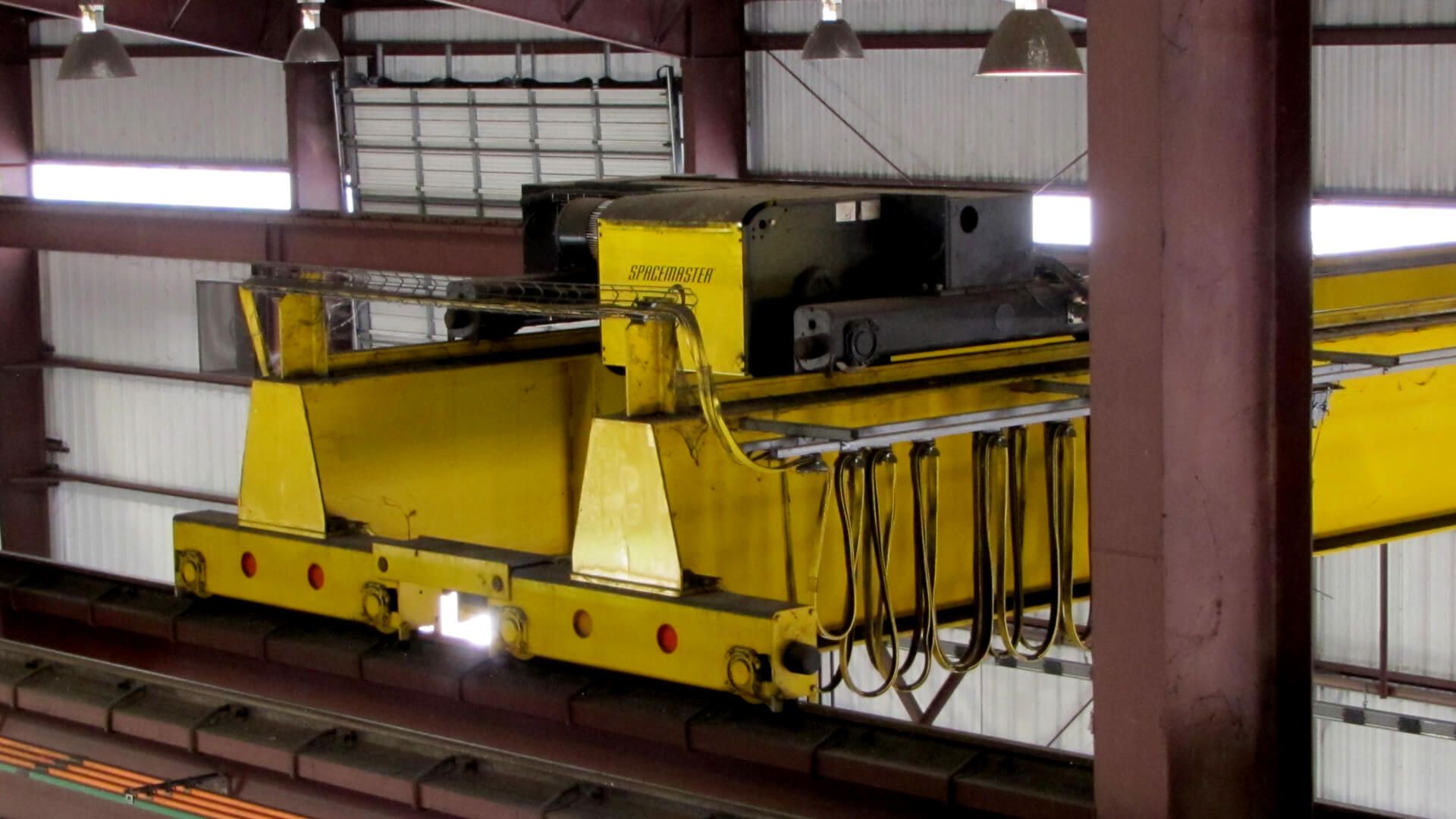

The site includes a railroad spur that leads directly into the facility, enabling efficient movement of materials and finished equipment. Inside the shop, the main bay features two 40-ton cranes with a 32’ underhook height, along with a concrete shop floor designed for demanding fabrication work.

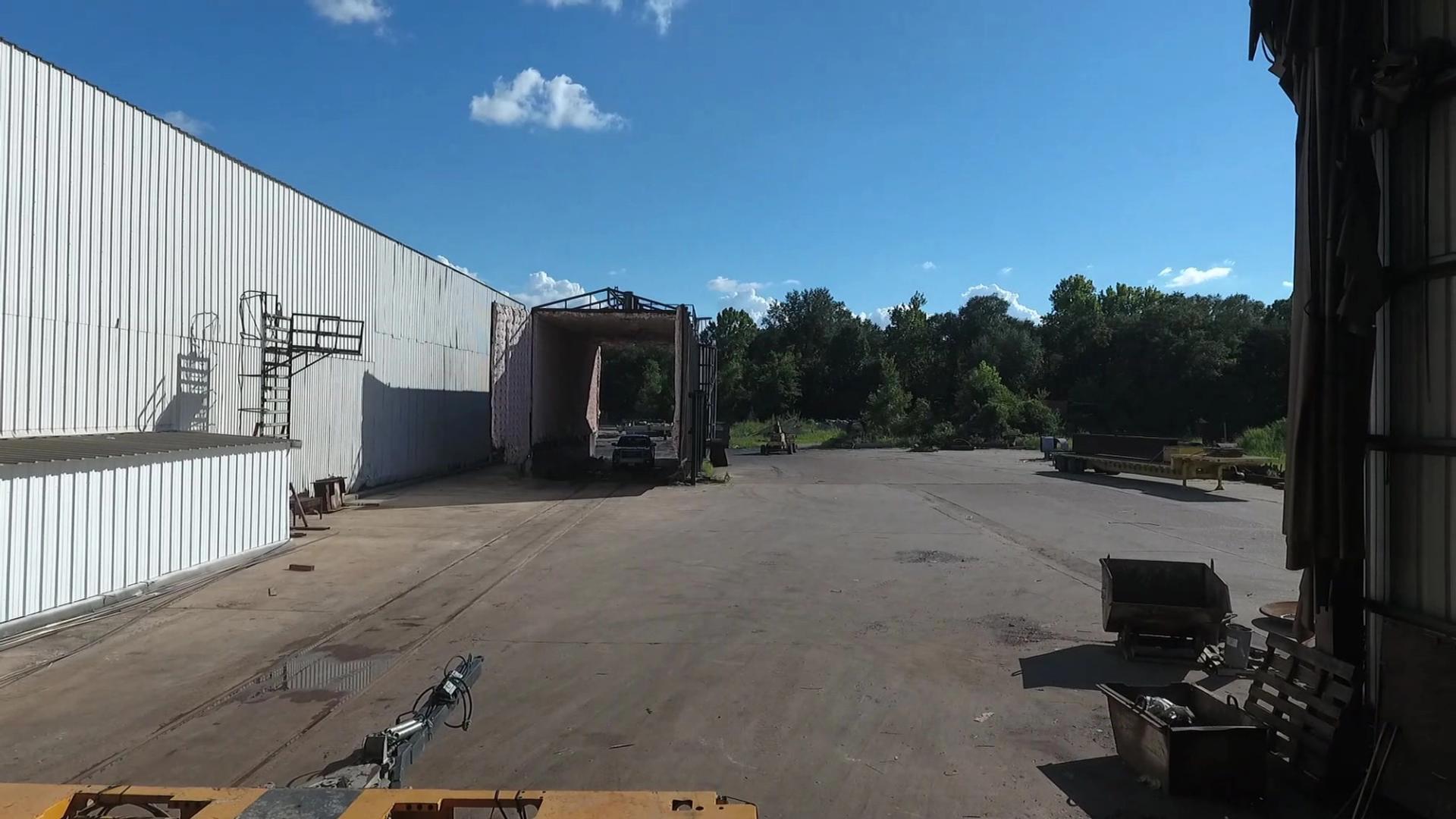

With covered production space, a large yard area, heavy crane support, and direct rail access, the facility is well-suited for projects that require careful handling, organized workflow, and reliable shipping coordination.
Facility at a Glance
We support large-scale fabrication work with the space, capacity, and certifications required for demanding industrial projects.
0 sq. ft.
Indoor shop area
0 acres
Yard area
0 lbs
Estimated monthly capacity
0 tons
Maximum single item weight
ASME Certified
Section VIII, Division I
TÜV Rheinland
Inspected facility
Industries Served
Krueger serves industries where reliable fabrication, precise workmanship, and dependable equipment performance are essential.
Fabrication & Shop Capabilities

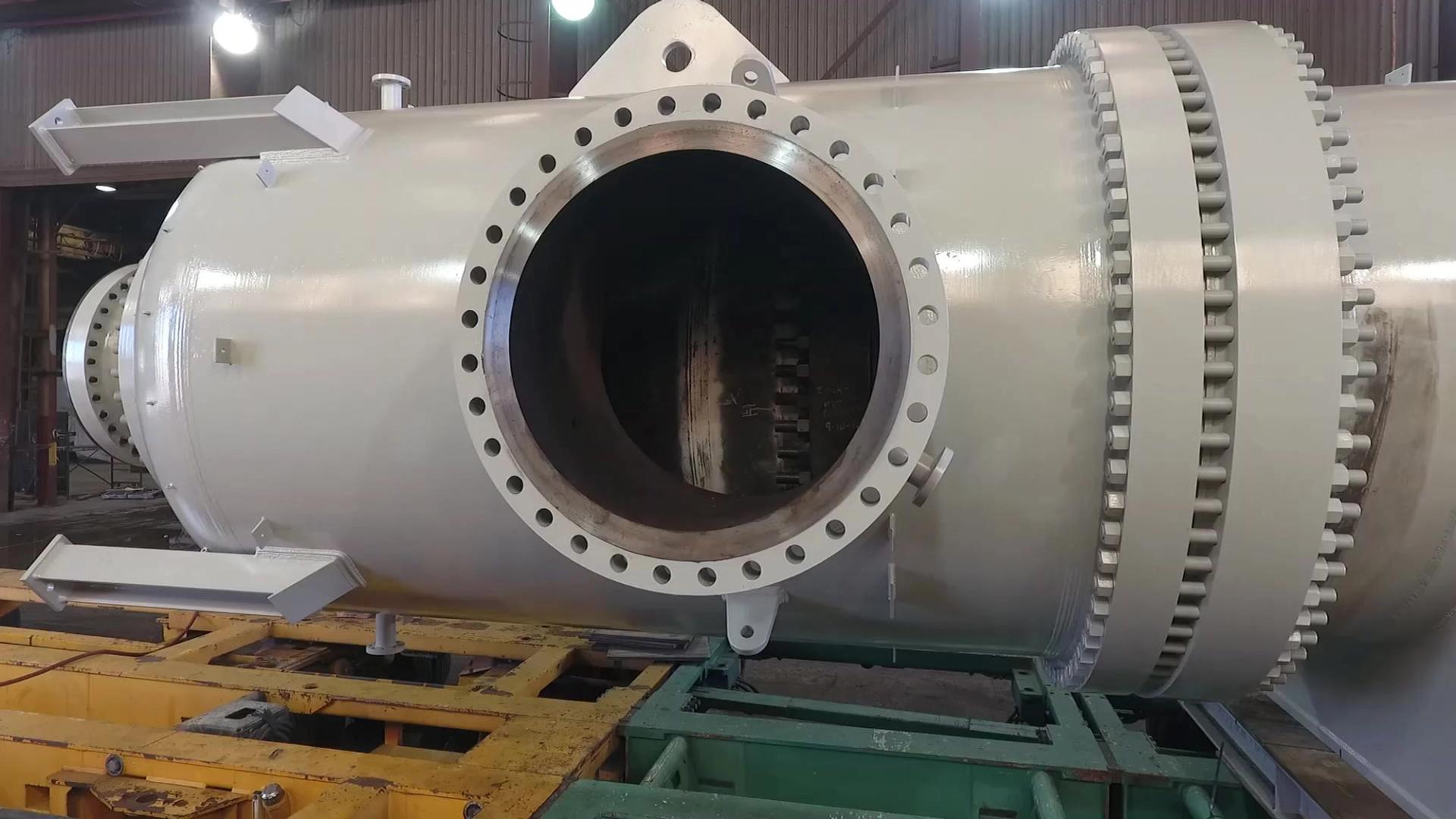

Krueger’s Houston facility supports a complete fabrication workflow, including welding, cutting, rolling, forming, machining, handling, and assembly. The shop is equipped to manage large components, thick materials, and custom-built equipment while maintaining control over quality and production efficiency.

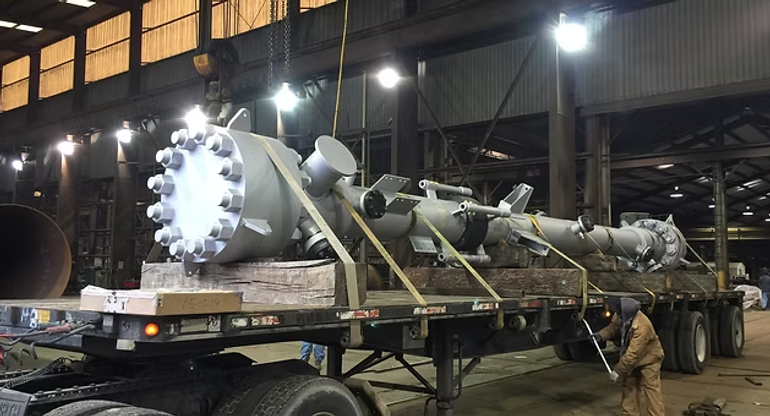

The fabrication shop employs ASME Code-certified welders and uses a broad range of welding equipment for industrial applications. Capabilities include AC and DC welding, manual and power welding positioners, manual and automatic turning rolls, automatic welding machines, tube welders, and inert gas welding equipment.
- 15 AC, 50 DC with current range 200–1500 amps
- 8 manual, 10 power welding positioners
- 28 manual, 20 automatic turning rolls
- 5 Lincoln manipulators ML2 automatic welding machines
- 5 Holbert automatic tube welders
- 4 Linde Heli-arc inert gas welders
- 2 National Cylinder Min-arc
- Multiple weld positioners up to 8’ diameter
- 15' x 15' Manipulator with Tandem Arc
The facility includes radial drills, CNC equipment, and machine tools used for precision fabrication and component preparation. These capabilities help support large-scale parts, custom layouts, and project-specific manufacturing requirements.
- (2) Radial drills, 77" reach, 18" column, 3" maximum drill size
- (1) Radial drill, 96" reach, 18" column, 3" maximum drill size
- (1) Radial drill, 144" reach, 30" column, 4 1/2" maximum drill size
- Quickmill 120" CNC — 120" OTC x 30" THK, table size 142" x 162"
- Quickmill 96" CNC — 96" OTC x 30" THK, table size 115" x 138"

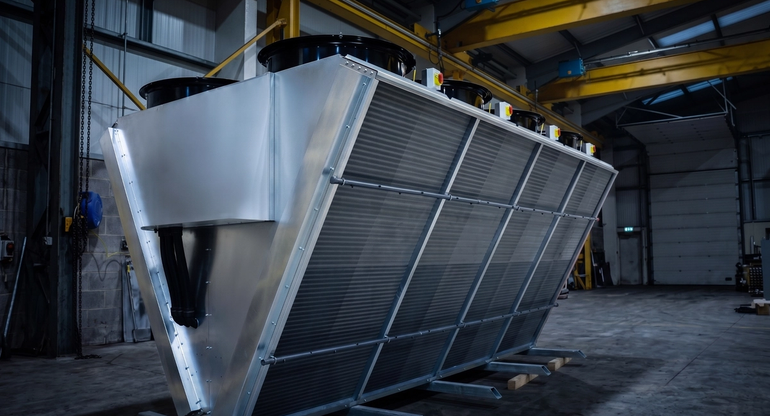

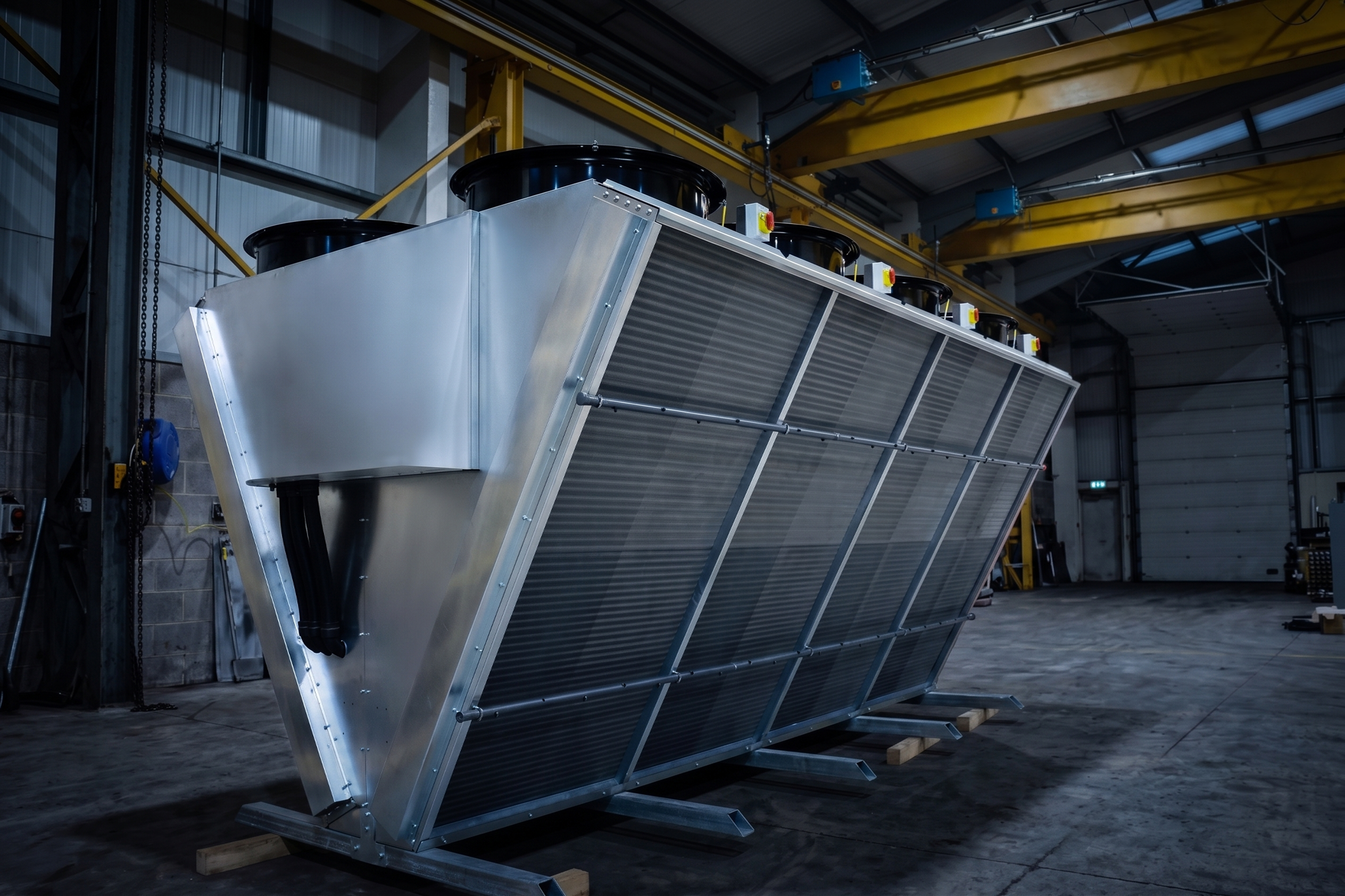

Krueger supports plasma cutting, plate rolling, plate forming, pipe cutting, beveling, and related preparation processes. Equipment includes the Davi Roller, PRESS 1250, Roundo Angle Roller, plasma-cutting systems, and pipe-cutting and beveling machines.
- Cladding / Overlay Capability
- 16" flex wheel DeWalt saw
- Multiple iron workers up to 130 ton capacity
- Plasma arc: (1) PAC-45, (1) PAC-10
- 6” x 6” x 1” Roundo Angle Roller
- 90’ x 10’ Alltra Plasma Cutting Table
- Hydmech V-18APC Automatic Tilt Frame Vertical Bandsaw
- Multiple pipe cutting & beveling machines up to 36” diameter

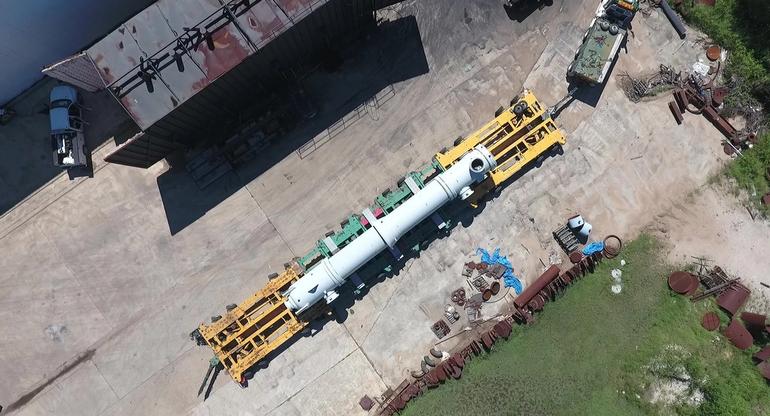

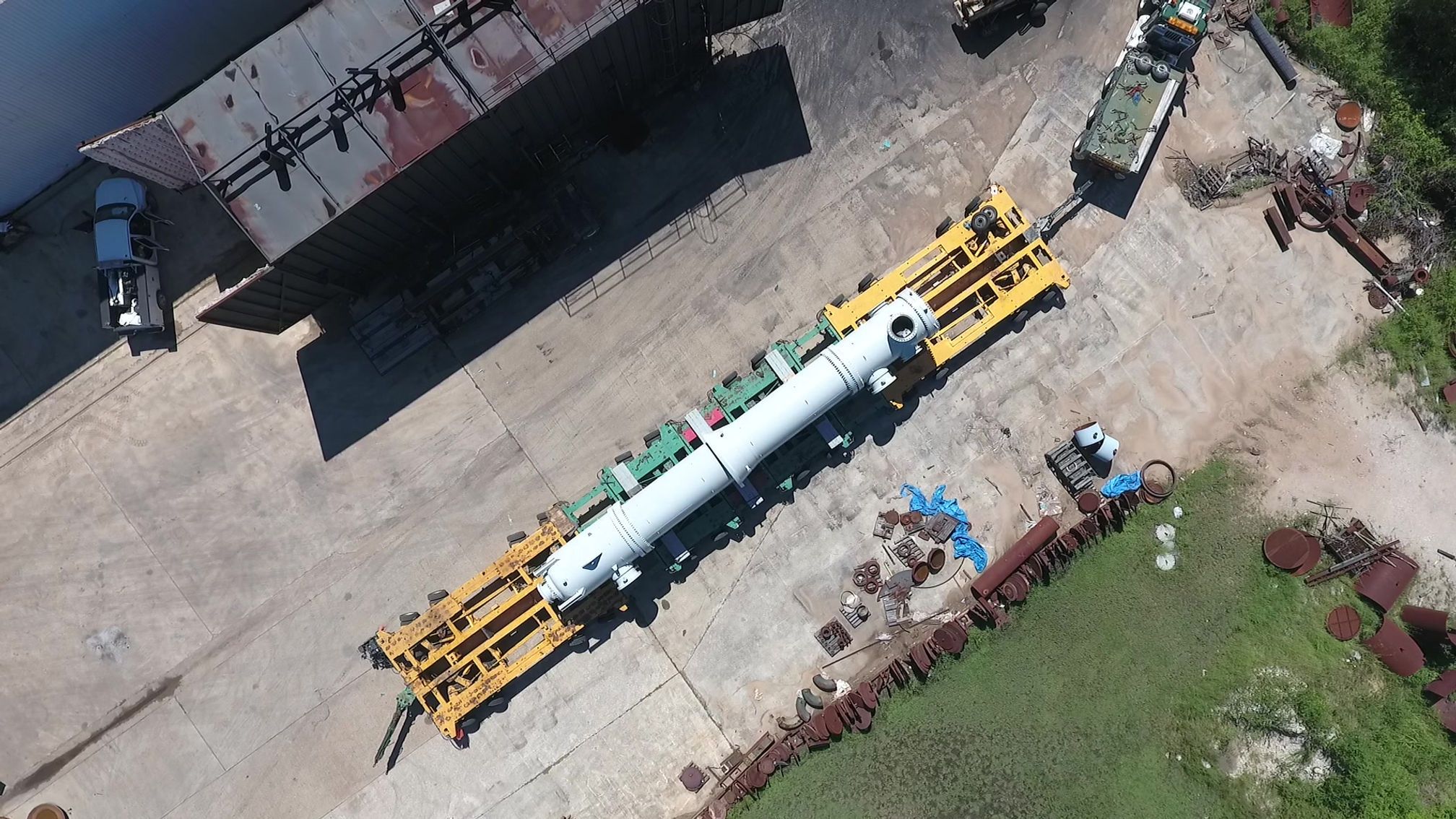

The shop and yard are equipped for the movement, positioning, and assembly of large industrial components. Gantry cranes, heavy crane capacity, and open working space help support safe and efficient handling throughout production.
Advanced Equipment for Heavy Fabrication

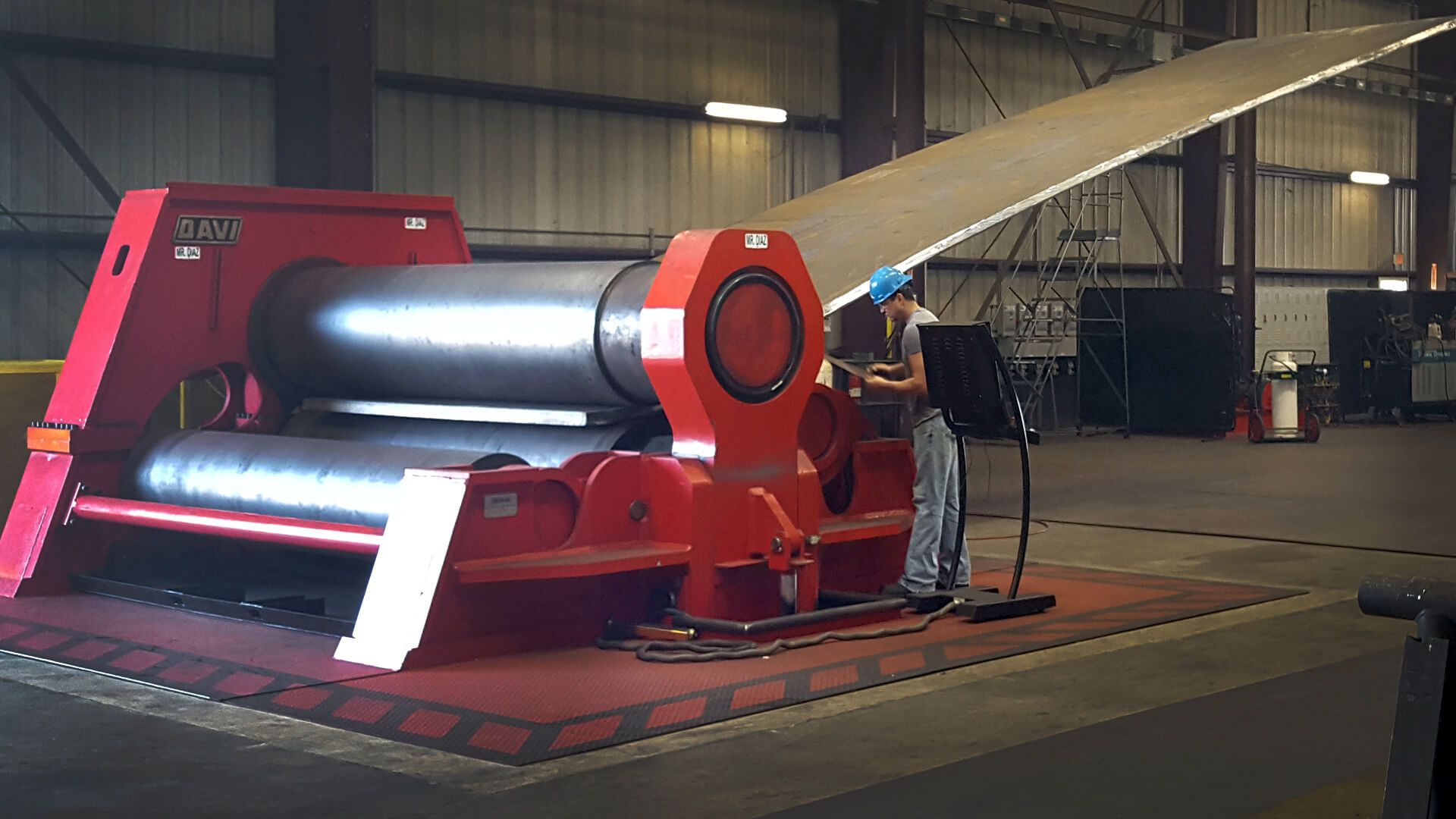

Capability to roll steel up to 4" thickness and up to 10' in length for cylinders, rings, and segments.

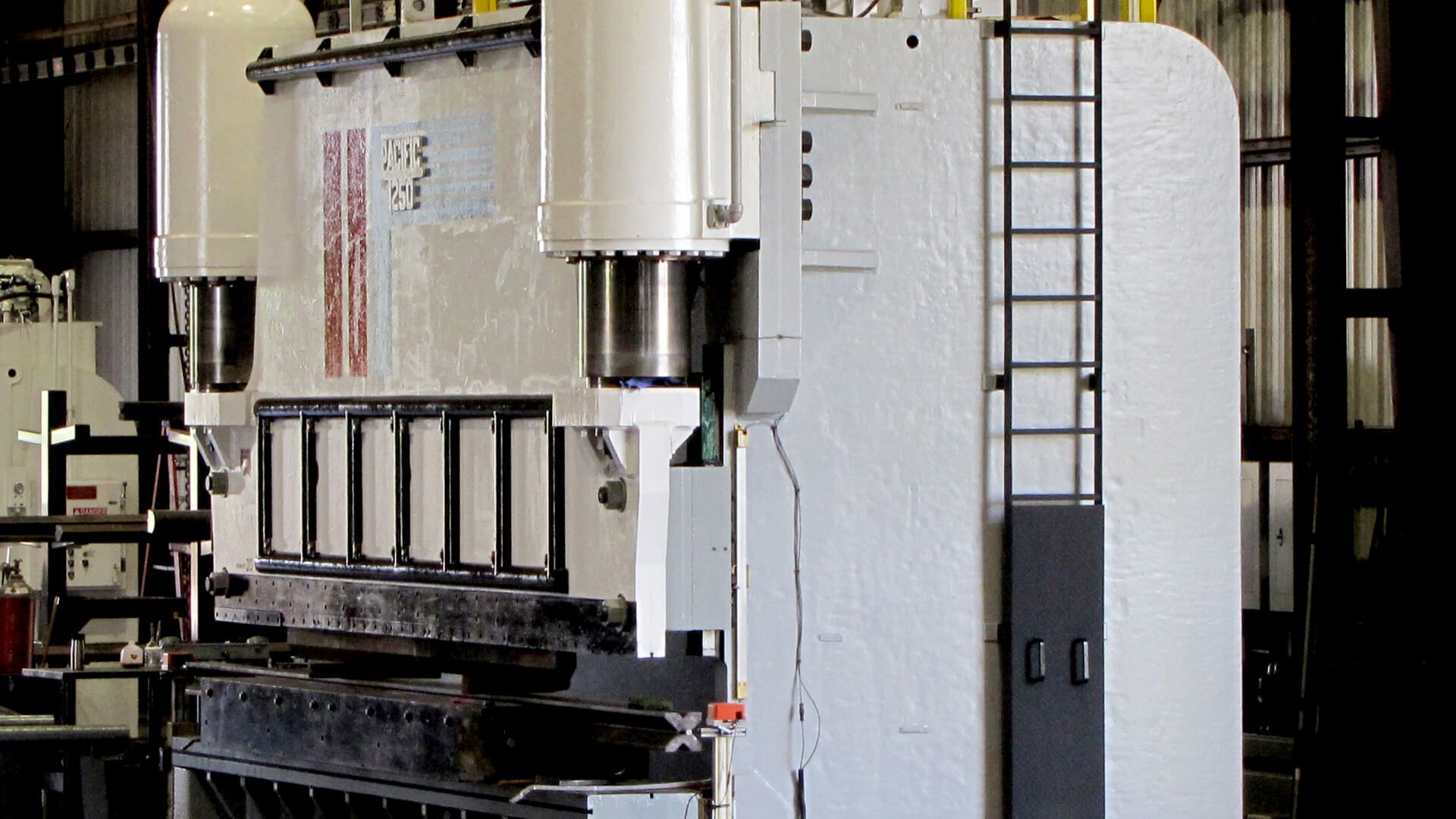

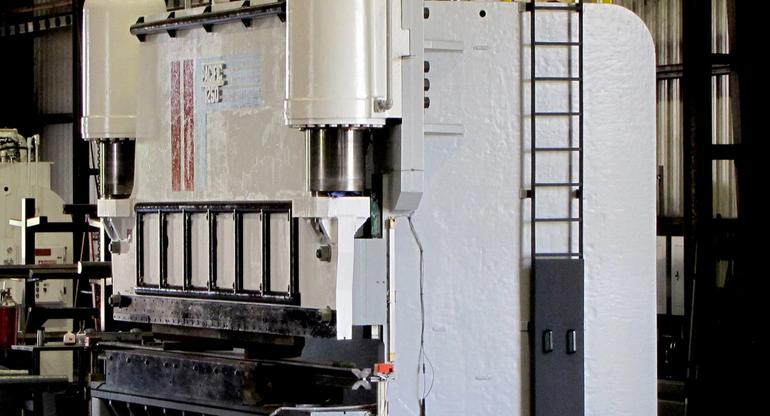

1250 ton CNC Press Brake, forms up to 4" thick, 10' length, and 1" plate up to 22' length.
Additional large-format equipment includes Quickmill CNC machines, a 90’ x 10’ Alltra Plasma Cutting Table, Roundo Angle Roller, automatic bandsaw, pipe cutting and beveling equipment, and multiple iron workers up to 130-ton capacity.
Quality, Testing & Material Expertise
Our facility supports industrial-grade quality control, inspection, and testing for complex fabrication projects. These capabilities help ensure that each project is manufactured to meet customer specifications, applicable standards, and demanding performance expectations.
Testing & Inspection
Available testing and inspection capabilities include radiographic inspection, PAUT inspection, hydrostatic testing up to 10,000 psig, and pneumatic testing up to 2,500 psig. Non-destructive testing methods are also available upon request, including halide, magnaflo, dye penetrant, and mass spectrometer testing.
- Radiographic & PAUT inspection
- Normal maximum hydrostatic test pressure: 10,000 psig
- Pneumatic test pressure: 2,500 psig
- Non-destructive testing available: halide, magnaflux, dye penetrant, mass spectrometer
Materials Handled
The facility works with a wide range of industrial materials, including carbon steel, stainless steel, nickel, nickel alloys, nickel-clad materials, low chromium steels, copper, aluminum, Monel, Hastelloy, Incoloy, aluminum bronze, and other nonferrous materials.
| MATERIAL | MAX | MIN |
|---|---|---|
| CARBON STEEL | 7" | 3/16" |
| NICKEL | 3" | 1/8" |
| NICKEL CLAD | 3" | - |
| NICKEL ALLOY | 3" | - |
| STAINLESS STEEL | - | 3/16" |
| LOW CHROMIUM STEELS | 3/16" | 1/8" |
| NONFERROUS | - | - |
| COPPER | 1" | 1/8" |
| EVERDUR | 1" | 1/8" |
| ALUMINUM | 1" | 1/8" |
| MONEL | 1 1/2" | 1/8" |
| HASTELLOY | 1" | 1/8" |
| ALUMINUM BRONZE | 1 1/2" | 1/8" |
| INCOLOY | 3" | 1/8" |
Certifications & Inspection Standards
Krueger’s fabrication capabilities are supported by ASME Code Certification: Section VIII, Division I, along with TÜV Rheinland Inspection. These standards help support regulated industrial projects where documentation, quality, and compliance are essential.
Heat Treating, Finishing & Shipping Support
Heat Treating
Krueger supports heat treating for fabricated equipment to help manage project schedules, reduce outside service dependency, and prepare components for demanding industrial use.

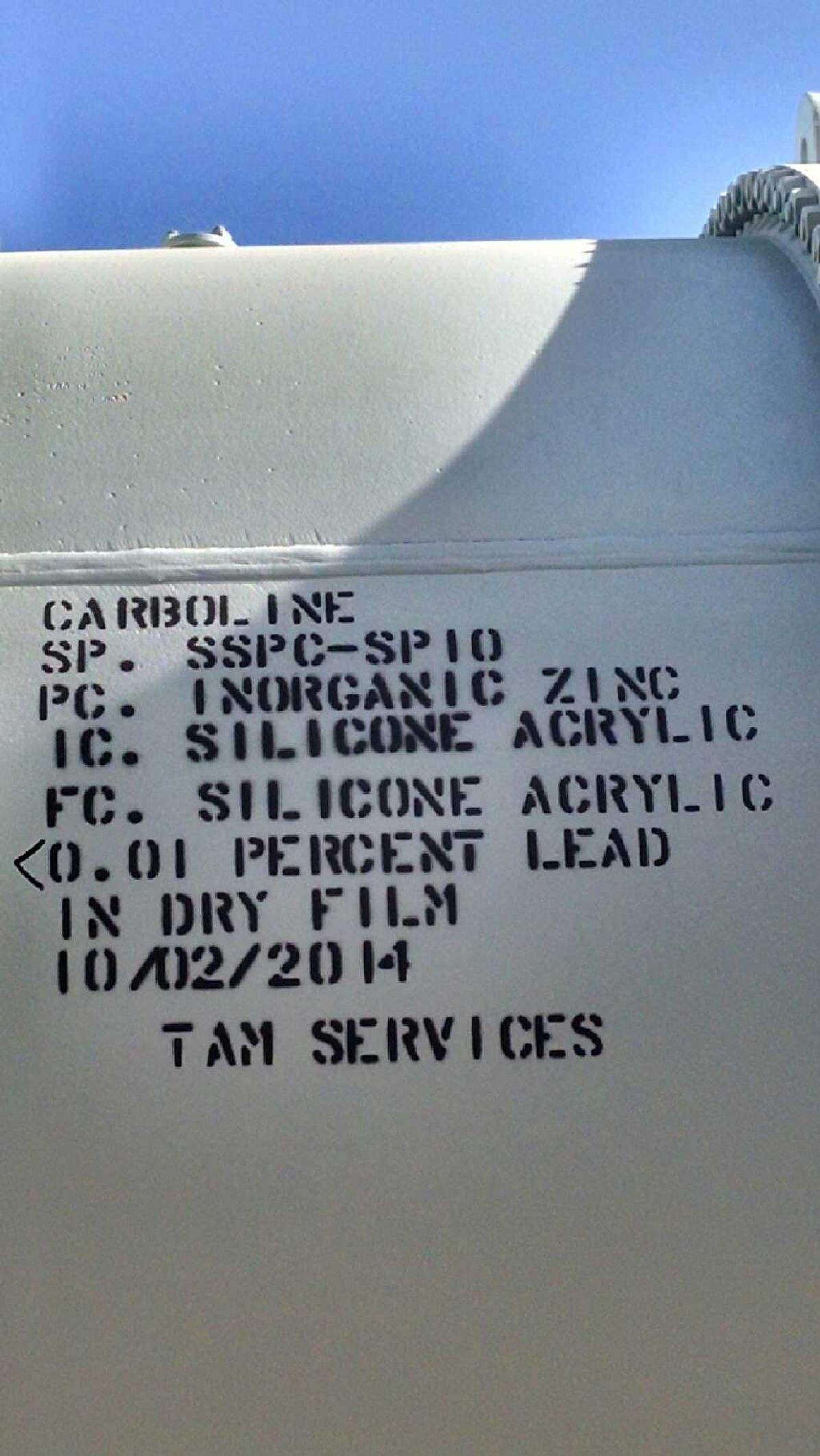

Finishing
Sandblasting and painting are handled in a large, covered area, allowing fabricated equipment to move through finishing stages with better control and efficiency.

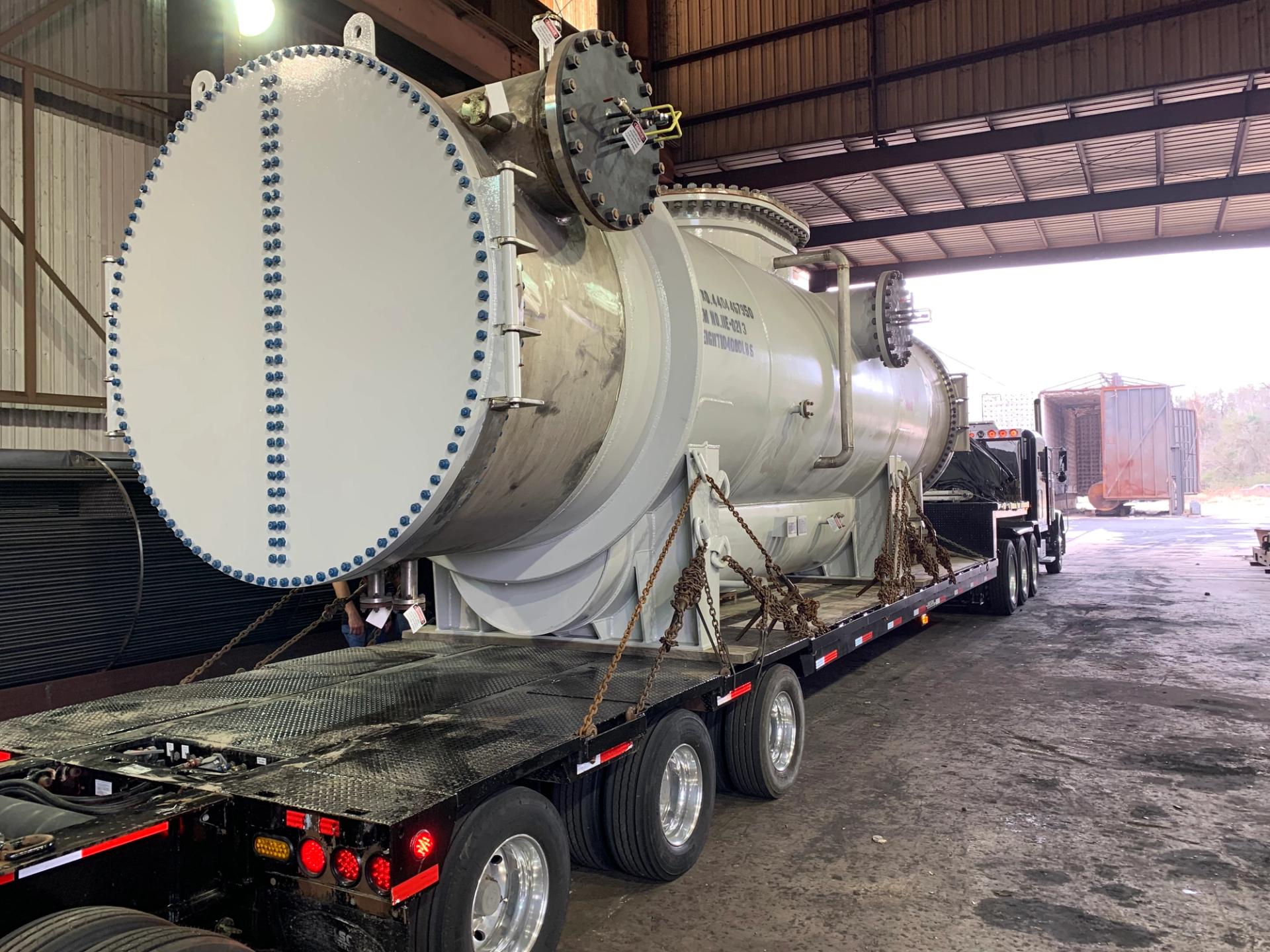

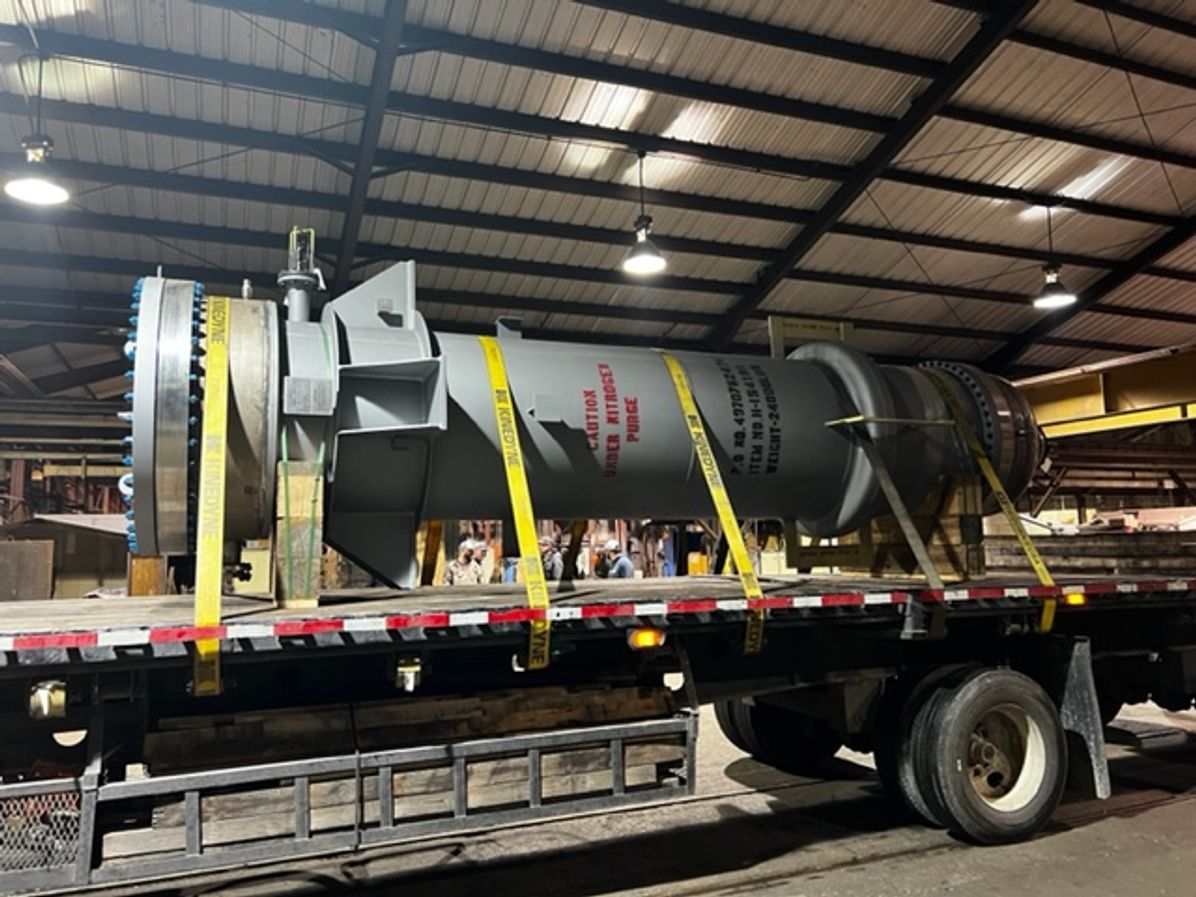

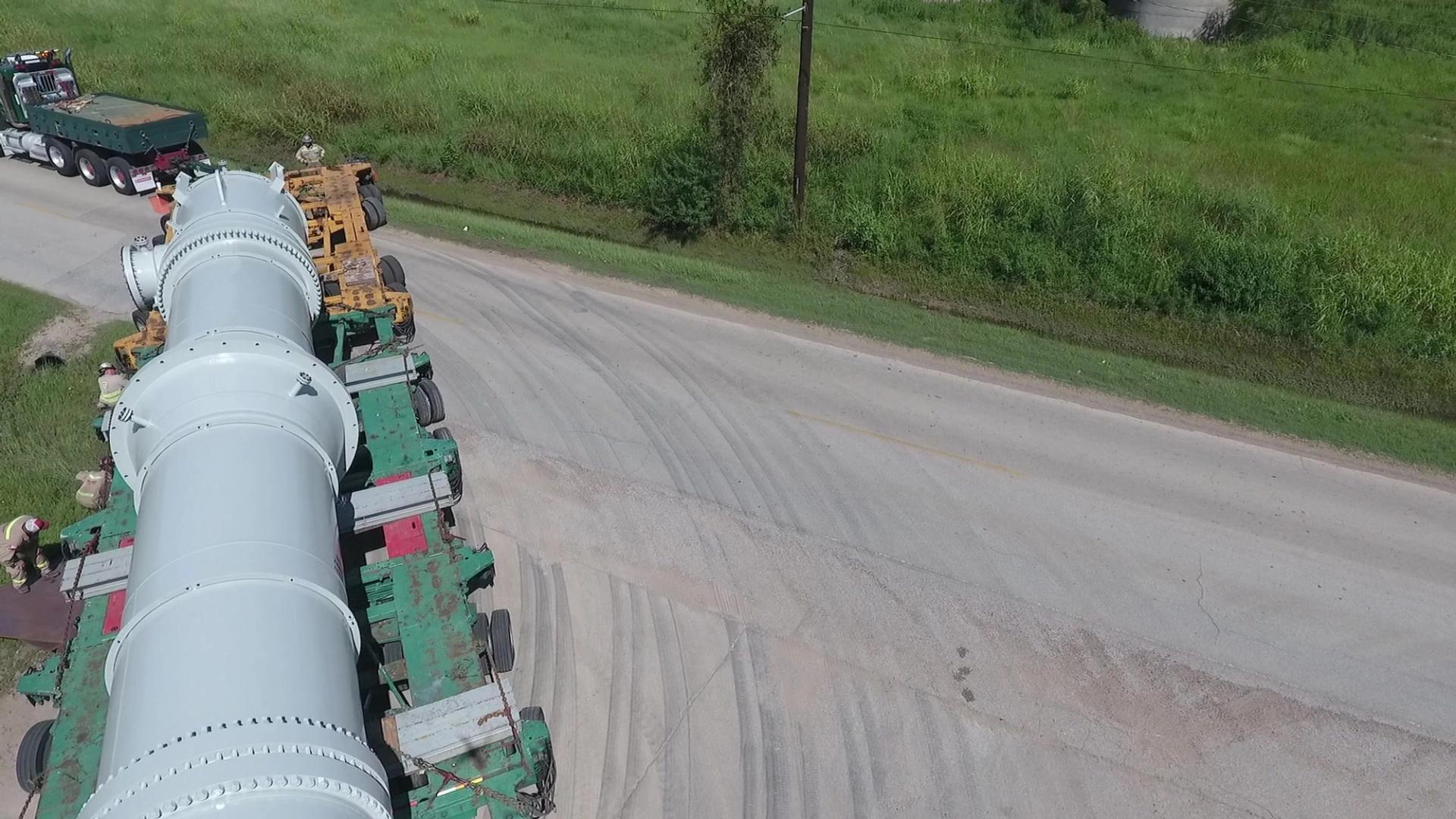

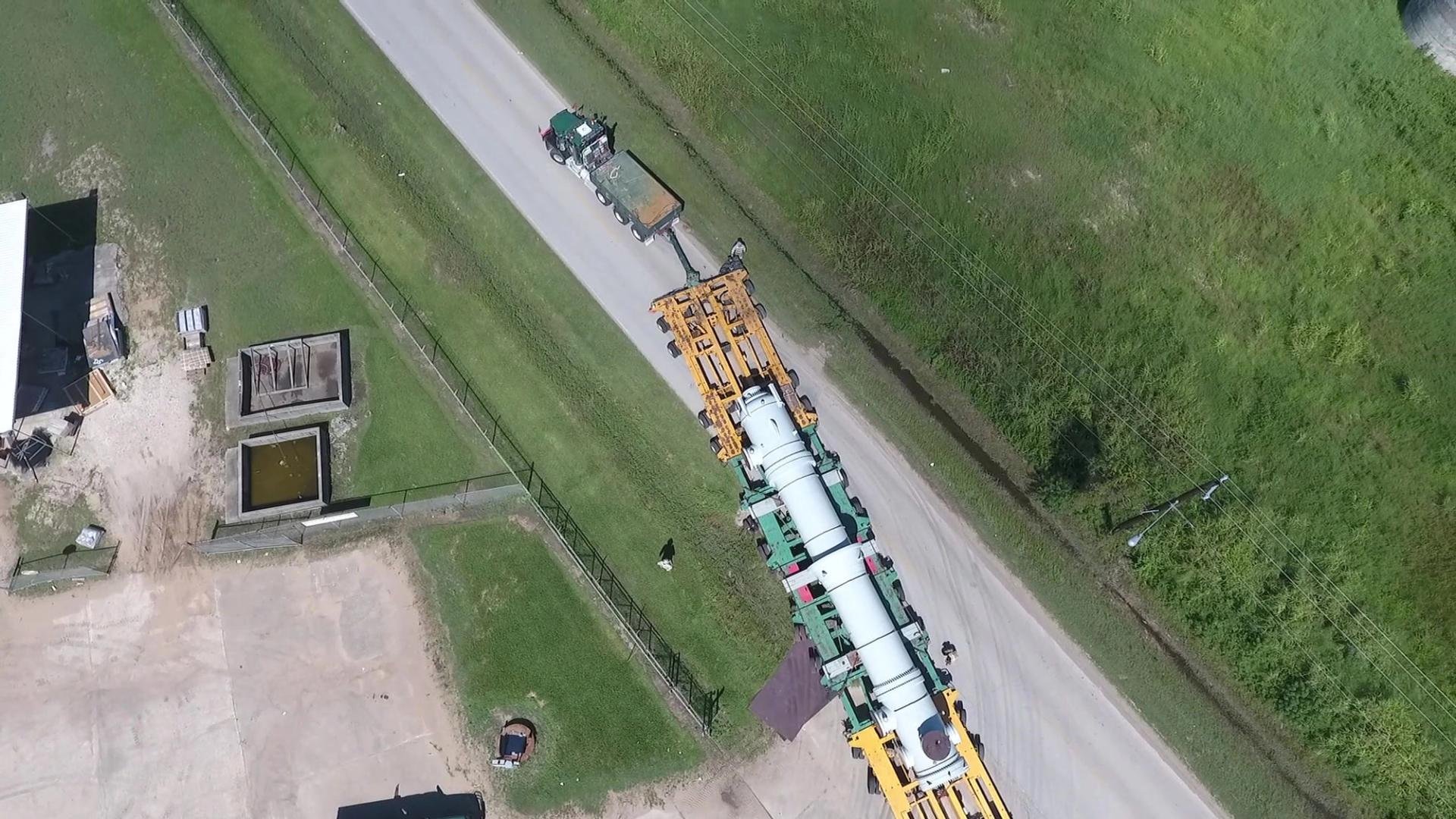

Shipping & Logistics
The Houston location provides convenient access to the Port of Houston for ocean freight, along with licensed motor freight, tractor-trailer shipments, and rail freight options for domestic and international projects.
Ready to Discuss Your Fabrication Requirements?
Share your project specifications with our Houston team to review fabrication needs, materials, testing requirements, and shipping options.
