Double Pipe and Multitube Heat Exchangers for Controlled Thermal Performance
Krueger Engineering manufactures custom heat exchangers and supports Double Pipe and Multitube Heat Exchangers applications for controlled heat transfer in industrial process systems through in-house engineering, fabrication, and testing.
Engineered Double Pipe and Multitube Heat Exchangers for Smaller Thermal Duties

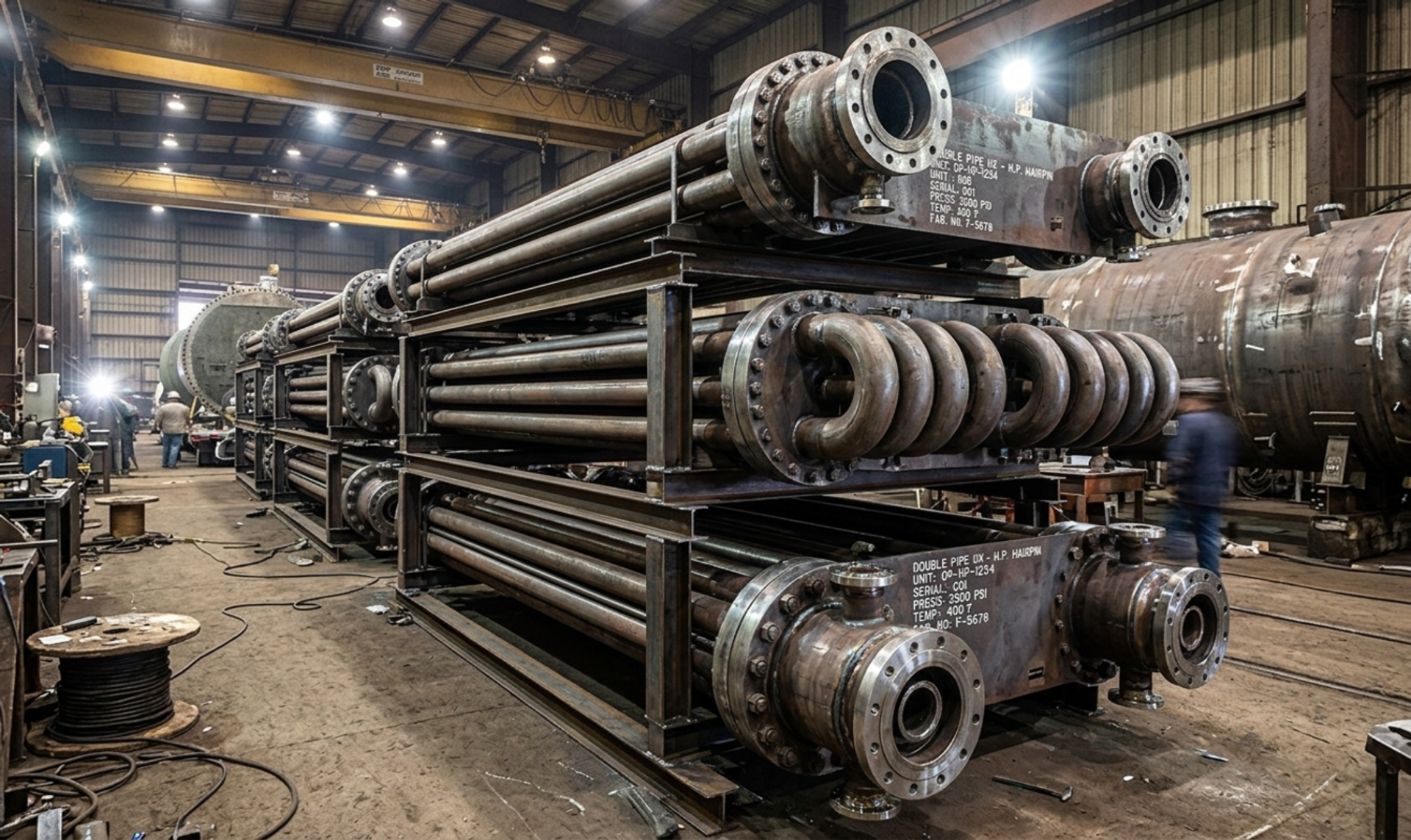

A double pipe heat exchanger uses a concentric pipe assembly in which one fluid flows through the inner pipe and the other through the annular space between the two pipes. These types of heat exchangers can offer good control of temperature and have closer approach temperatures than many parallel flow designs. They are chosen when there is a need for smaller thermal loads, small flow rates, and more compact designs.
These heat exchangers are also suitable for modular design, where more than one unit can be connected in series or in parallel, depending on the requirements. The application of these heat exchangers is supported by Krueger Engineering, which offers services including custom heat exchanger design, thermal modeling, mechanical engineering, machining, fabrication, and testing from our Houston-based facility.
Krueger Engineering Expertise in Double Pipe and Multitube Heat Exchangers
Krueger Engineering applies its in-house exchanger engineering and fabrication capabilities to double-pipe heat exchanger applications where compact design, controlled heat transfer, and structural integrity are required. Each unit is developed using proven thermal and mechanical practices to support consistent operation in industrial service.
Capabilities & Specifications
- Custom Heat Exchanger EngineeringEach exchanger is designed to match process-specific duty, flow conditions, and installation constraints.
- Thermal Modeling for Duty OptimizationAnalyses are performed to determine the sizing of the exchanger and its performance at operating conditions.
- Mechanical Design to Accommodate Pressure and Temperature Needs
Mechanical design accounts for pressure ratings, thermal expansion, and mechanical stresses.
- Concentric Pipe/Tube-in-Tube Flow Path Design
This design of the concentric piping will accommodate effective heat exchange between the two streams.
- Options for Counter Flow and Parallel Flow Configuration
Flow configuration is selected based on thermal performance requirements and operating conditions.
- Corrosion-Resistant Materials to Be Used
Materials that can endure corrosion from the fluids and temperatures will be selected.
- Machining and Fabrication Procedures to Be Done PreciselyMachining and fabrication processes ensure proper fit-up and dimensional accuracy.
- Hydrostatic and NDT TestingInspection and pressure testing verify integrity and readiness for operation.
Benefits
- Compact Design for Limited Installation SpaceThe inline configuration fits well in areas where larger exchangers are not practical.
- Efficient Heat Transfer in Counterflow ArrangementCounterflow operation supports strong thermal performance and closer temperature approach.
- Good Fit for Low-Flow or Smaller-Duty ApplicationsWell-suited for processes where flow rates and heat loads are moderate.
- Flexible Layout Using Series or Parallel AssembliesMultiple units can be combined to match capacity or adjust performance over time.
- Easier Expansion and Repair PotentialModular arrangements allow adjustments or replacements without major system changes.
- Reliable Performance in Industrial ServiceConsistent construction and testing support stable operation under varying conditions.
Krueger Engineering delivers double pipe type heat exchanger solutions that combine compact design flexibility with dependable thermal performance tailored to each application.
