Rod Baffle Heat Exchangers for High-Performance Thermal Systems
Krueger Engineering and Manufacturing offers Phillips Rod Baffle Heat Exchangers designed to improve shell-side flow, minimize fouling, and support long-term performance in demanding industrial processes.
Custom Rod Baffle Heat Exchangers for Process Reliability

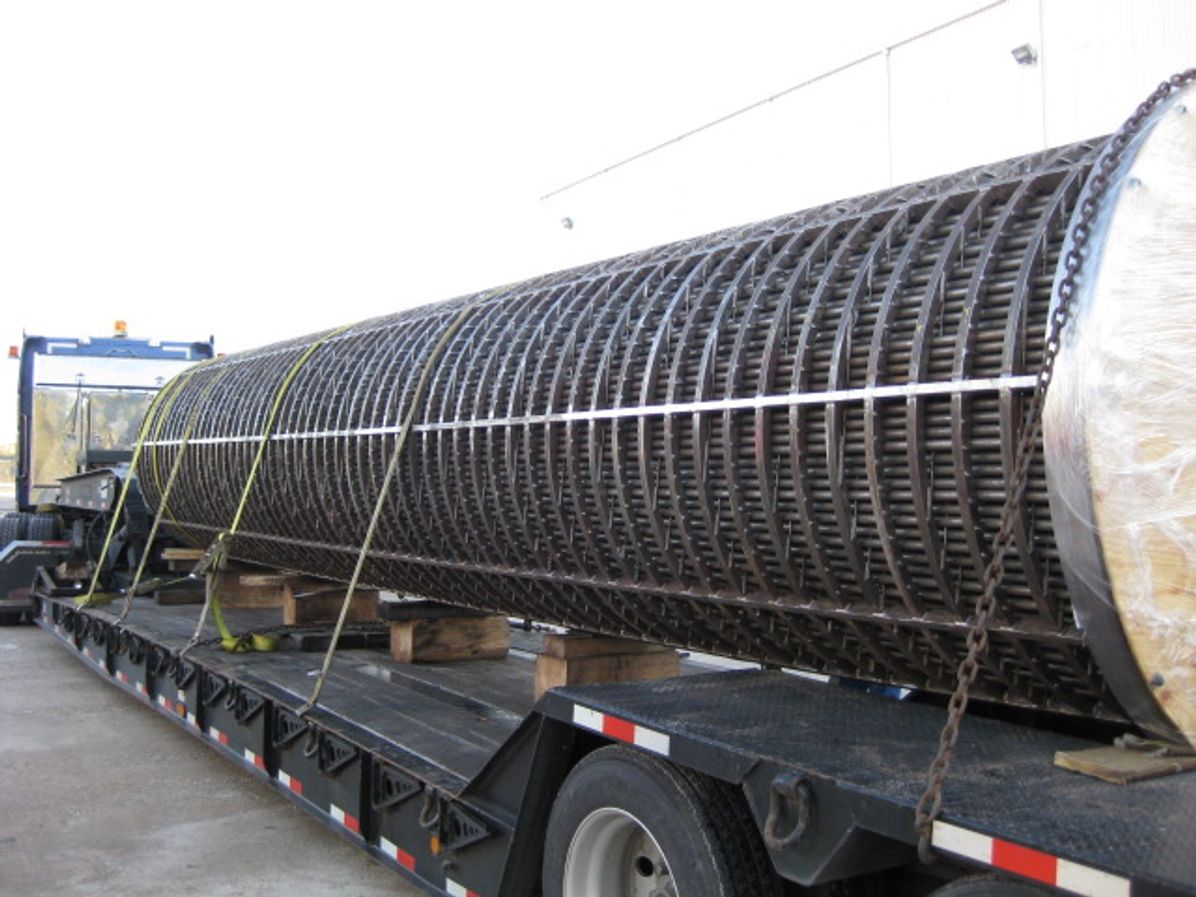

Phillips Rod Baffle Heat Exchangers take a different approach to shell-side flow. Instead of forcing fluid through restrictive segmental baffles, the rod support system allows a more open, continuous path across the bundle. That means lower pressure drop, fewer stagnant zones where fouling begins, and more consistent heat transfer where it actually matters.
Krueger Engineering and Manufacturing includes advanced rod baffle configurations within its heat exchanger capabilities, supported by a 110,000 sq. ft. Houston manufacturing facility equipped for large-scale fabrication. Each unit is developed using HTRI thermal modeling and mechanical design tools such as PV-Elite and Compress, with precision CNC tube sheet drilling to maintain tight tolerances. ASME Section VIII fabrication, in-house welding, and full hydrostatic and non-destructive testing ensure structural integrity, while integrated bundle handling capabilities allow Krueger to execute complex exchanger builds for refinery, petrochemical, gas processing, and power applications.
Phillips Rod Baffle Exchanger Capabilities and Benefits
Krueger Engineering and Manufacturing builds Phillips Rod Baffle Exchangers to handle high flow rates with controlled pressure drop and consistent thermal performance. Each Phillips Rod Baffle Heat Exchanger is backed by decades of heat transfer expertise and built in our 110,000 sq. ft. Houston facility for large-diameter, heavy-duty exchanger construction.
Capabilities & Specifications

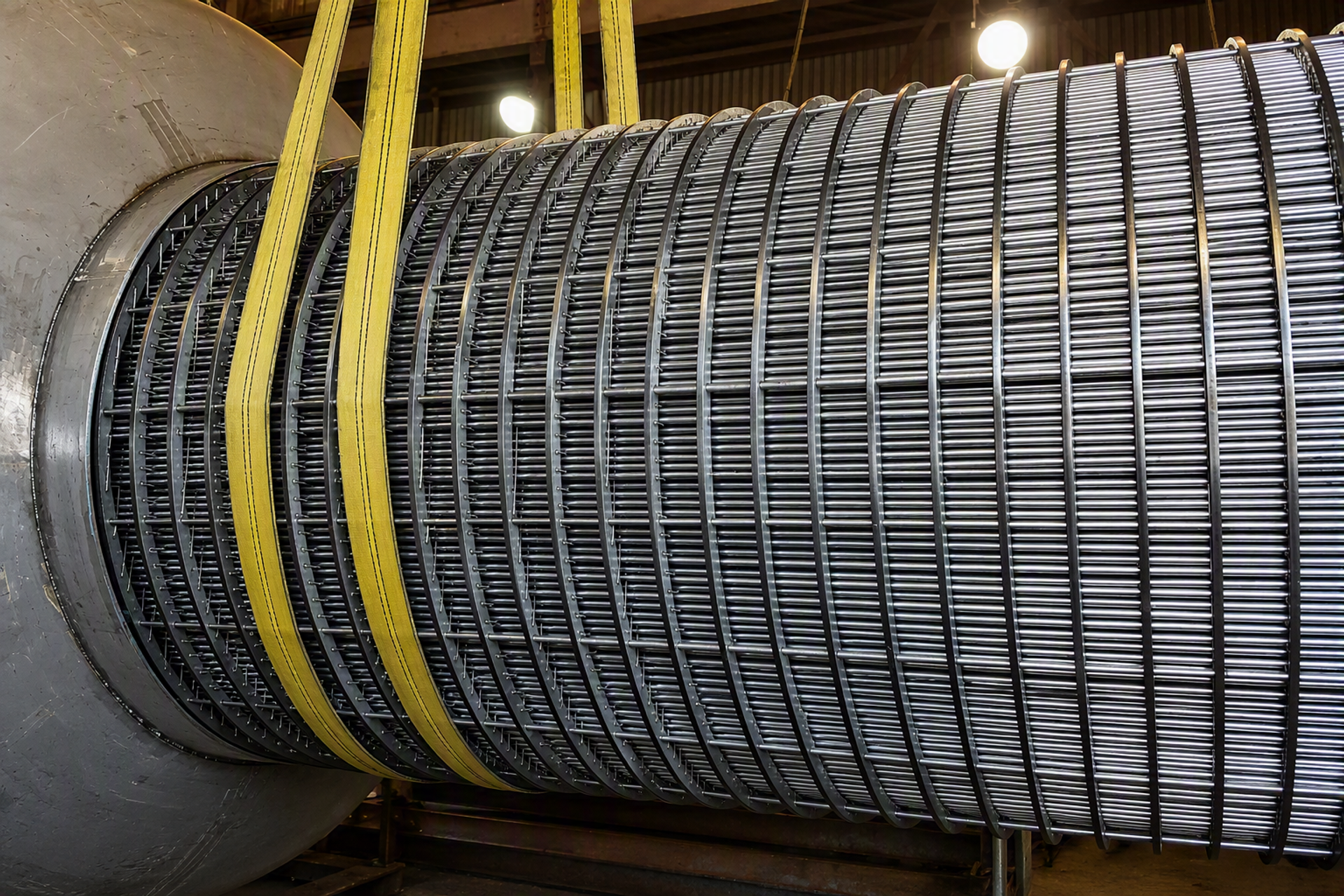

- Shell-and-Tube Rod Baffle Exchanger DesignAdvanced rod baffle configurations support tubes while allowing more uniform shell-side flow compared to segmental designs.
- HTRI Thermal ModelingThermal performance is validated using HTRI to manage heat flux, flow distribution, and fouling risk.
- Mechanical Design with PV-Elite, Compress, and Nozzle ProDesign tools are used to address pressure loads, nozzle stresses, and thermal expansion in high-duty service.
- Advanced Rod Baffle and Tube Layout ConfigurationsLayouts are engineered to minimize bypassing and maintain consistent velocity across the bundle.
- Low-Pressure-Drop Shell-Side DesignThe unobstructed flow path minimizes resistance and supports high-volume shell-side service.
- Corrosion and Erosion Mitigation Strategies
Material selection may include carbon steel, stainless steel, nickel alloys, and duplex materials based on service conditions.
- Precision CNC Tube Sheet DrillingMachining ensures tight tolerances and proper tube alignment for long-term mechanical stability.
- ASME Fabrication, Welding, and TestingExchangers are fabricated to ASME Section VIII standards and undergo hydrostatic, pneumatic, and non-destructive testing for quality verification.
Benefits
- Reduced Shell-Side Pressure DropRod baffle design allows smoother flow, lowering energy loss across the exchanger.
- Improved Heat Transfer EfficiencyUniform flow distribution reduces bypassing and increases effective heat transfer area usage.
- Lower Fouling TendencyElimination of stagnant zones helps limit buildup and extends cleaning intervals.
- Better Tube Vibration ProtectionContinuous rod support reduces flow-induced vibration and tube wear.
- Reliable Performance in Severe Process ConditionsBuilt to handle high pressure, corrosive media, and continuous operation in refinery and gas service.
- Long-Term Exchanger DurabilityHeavy-duty construction and in-house quality control support extended service life.
Krueger Engineering delivers rod baffle exchangers that combine controlled pressure drop, reduced fouling, and consistent thermal performance in demanding service.
Explore Our Full Range of Products
Krueger Engineering and Manufacturing specializes in the design and production of high-capacity boilers, including waste heat recovery systems, built to your exact process requirements. We turn complex thermal specifications into rugged, reliable equipment that powers your most critical operations.
Krueger Engineering and Manufacturing designs and fabricates waste heat recovery boiler systems that capture thermal energy from industrial process gases and convert it into usable steam for power generation, refining, and petrochemical operations.
Krueger Engineering delivers advanced heat exchanger systems, from feed-effluent designs to rod baffle and transfer line configurations, optimized for thermal efficiency, uptime, and durability.
Krueger Engineering and Manufacturing designs and fabricates high-performance reboilers, including specialized glycol reboilers and process heaters. Our team ensures every unit is tailored to meet your unique specifications and exacting process requirements.
Krueger Engineering manufactures high-performance glycol reboilers designed to efficiently regenerate glycol in natural gas dehydration systems, ensuring reliable operation under demanding industrial conditions.
Krueger Engineering and Manufacturing is a leading industrial heater manufacturer delivering heavy-duty thermal systems engineered for high-pressure, high-temperature, and corrosive process environments across critical industrial operations.
Krueger Engineering and Manufacturing designs and builds fuel oil heaters that precisely raise the temperature of heavy fuel oils to the required viscosity, ensuring stable pumping and atomization for efficient combustion.
Krueger Engineering manufactures custom industrial steam coils designed to efficiently heat air by transferring latent heat as steam condenses, delivering precise thermal control for complex industrial processes.
Krueger Engineering and Manufacturing delivers custom, ASME-compliant industrial condensers tailored to your exact process specifications for maximum thermal efficiency and long-term reliability.
Krueger Engineering and Manufacturing delivers custom, ASME-compliant surface condensers tailored to your exact process specifications for maximum thermal efficiency and long-term reliability.
Krueger Engineering delivers reliable, ASME-compliant gland condensers in-house, capable of capturing and condensing leakage steam for turbine protection and water recovery.
Krueger Engineering designs and manufactures custom ASME-compliant dump condensers for condensing turbine exhaust steam and supporting efficient plant operation.
Proven Applications for Custom Heat Transfer Equipment
Our precision-engineered systems provide mission-critical thermal management and process efficiency across a diverse range of industrial sectors:
Petroleum
Specialty
Pharmaceutical
Petrochemical
Power Generation
Mining / Metallurgy
End-to-End Fabrication Services for Industrial Thermal Equipment
Krueger Engineering and Manufacturing provides a full suite of in-house services to ensure every component of your custom equipment meets our strict quality and performance standards:
Beveling
Krueger Engineering provides precision edge preparation for steel plates up to 2” thick, ensuring optimal weld penetration and structural integrity for your most demanding projects.
Eccentric & Concentric Cones
We manufacture eccentric and concentric cones to meet exact project requirements across demanding industrial applications.
Forming
Krueger Engineering provides precision steel forming services for heavy industrial parts and custom-fabricated components.
Pipe and Plate Forming
Krueger Engineering provides precision pipe and plate forming services for heavy-duty industrial applications. We form heavy walls and high-strength pipe with the accuracy and consistency required for demanding projects.
Plasma Cutting
Krueger Engineering delivers precision plasma cutting services for industrial plate fabrication and edge preparation. Our equipment is built to produce accurate parts, clean cuts, and dependable results for demanding applications.
Plate Bending
Krueger Engineering provides high-capacity plate bending services for industrial projects that require accuracy, repeatability, and dependable performance. Our operation is built to support heavy-duty forming for pressure, structural, and custom fabrication applications.
Plate Crimping
Krueger Engineering provides advanced crimping solutions to shape heavy-gauge steel into precise, repeatable geometries. We ensure every profile meets the rigid standards required for large-scale industrial and thermal projects.
Post Weld Heat Treat
Krueger Engineering provides post weld heat treat processing for large fabricated components and tank-related applications.
Rolled Cylinders
Krueger Engineering delivers high-precision cylinders tailored for pressure vessels, storage tanks, and heavy structural applications.
Rolling
Krueger Engineering provides high-capacity plate rolling services for industrial projects that require controlled forming, repeatable geometry, and dependable fabrication performance.
Welding and Cutting
Krueger Engineering delivers welding and cutting services for complex fabrication work that demands strength, control, and code-focused execution.
Engineering
Krueger delivers engineering support for custom heat transfer equipment and complex industrial projects. Our team combines specialized design software with experienced technical review to develop solutions that are practical to build and built to perform.
Plan Your Phillips Rod Baffle Exchanger with Krueger Engineering
Work directly with Krueger Engineering to develop a custom rod baffle heat exchanger design based on your process duty, shell-side pressure drop limits, fouling concerns, and operating conditions. We provide custom engineering, fabrication, and testing to deliver exchangers built for reliable performance in demanding service.
